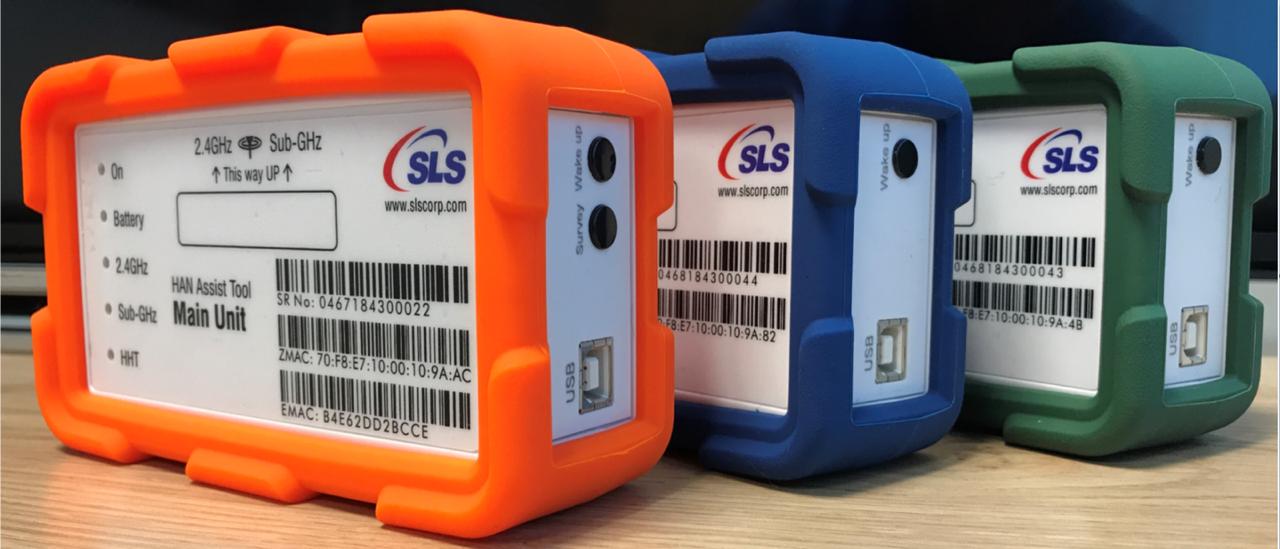

HAT (HAN Assist Tool) HAT (HAN Assist Tool) is a unique Home Area Network survey tool and there is no-WAN installation toolkit. It simplify Smart Meter Installers’ decision making also de-risk any complex 2.4 & Sub-GHz IoT deployments.

  • Encrypted, wireless connectivity through Wi-Fi & Bluetooth®
  • REST API integration to work & asset management solutions
  • Can be used standalone - without App or API integration
  • Upgrade Over-The-Air from App or HHT, or direct via cable
  • Flexible USB charging; rugged soft or hard carry case options
  • Detailed RF survey results stored and HHT GBCS logging

Two Essential Functions

HAN Survey Tool

  • Place units at meter and device install locations
  • Easily scan 2.4 GHz and Sub-GHz frequency channels – including all Zigbee channels.
  • Pick the right Communications Hub, Gas & Electricity Meters, and other devices
  • Simplify decision making, reduce time, cost and risk of unhappy customers

HHT Proxy Function

  • Facilitates No WAN Installation
  • Pair and configure devices in the absence of WAN
  • Local Command Delivery of Service Requests/GBCS for UK Smart Metering
  • Create and configure a working Home Area Network
  • Set up tariff display and prepayment functionality

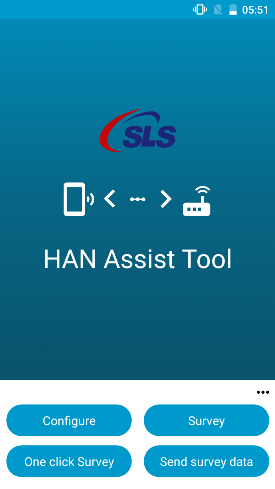

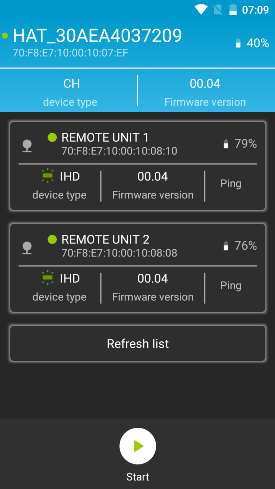

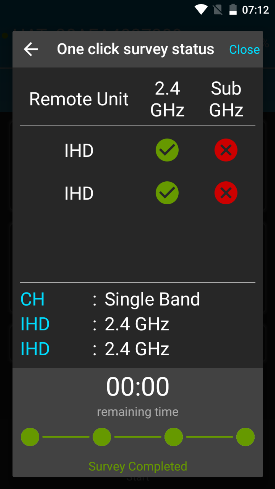

MULTI PLATFORM APPLICATION WITH SURVEY

Device Specifications

HAT Product Specification

Power Input 5V DC Input
Operating Current Max 4A DC
Operating Temperature -40 ºC to +85 ºC
Storage Temperature -40 ºC to +100 ºC
Battery Charge Capacity 2 full days use
Silicon Protection Cases Colour Coded
IP Rating IP54
RoHS / CE / RED Yes
ZigBee Chipsets - NXP JN5169 (controller + 2.4 GHz) - NXP OL2385 (Sub-GHz)

Main Unit Specification

CPU Xtensa® Dual Core 32-bit LX6 Microprocessor
ROM 448 KB
SRAM 520KB
Wi-Fi 802.11 b/g/n/e/i
Zigbee 2.4 and Sub GHZ
Power Input Micro USB / Type B Battery Powered
Operating Voltage 5V DC
Operating Current Max 1A DC
Operating Temperature -40 ºC to +85 ºC
Storage Temperature -40 ºC to +100 ºC
Battery Charge Capacity 2 full days use

Remote Unit Specification

CPU 32-BIT RISC CPU
ROM 4 KB EEPROM
SRAM 32 KB
Zigbee 2.4 and Sub GHZ
Power Input Micro USB / Type B Battery Powered
Operating Voltage 5V DC
Operating Current Max 1A DC
Operating Temperature -40 ºC to +85 ºC
Storage Temperature -40 ºC to +100 ºC
Battery Charge Capacity 2 full days use
